Glass wash and dry machine(stainless steel ) low available

A:Wash and dry machine(front )

A. Wash and dry machine(back )
It is also stainless steel for the back door, there is ladders back of whole line for checking machine

B. Lamps installed for glass checking and conveying and low E automatic detection.

C: Seven motors installed on top of wash machine, six brushes installed six motors , and the left motor for transfering .

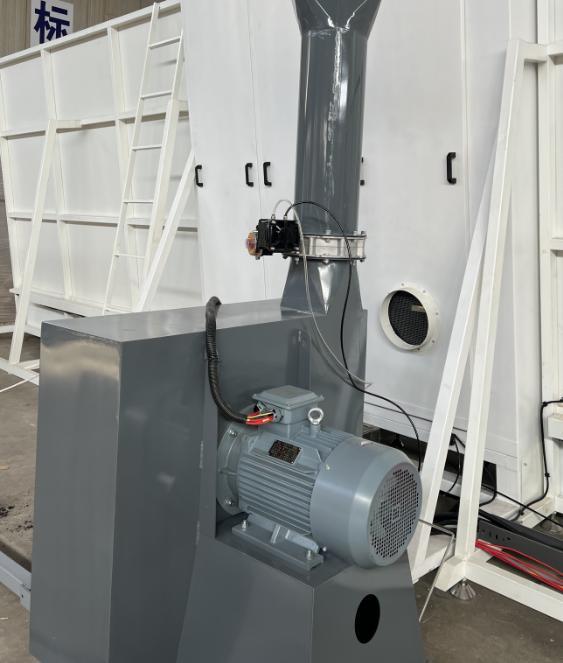

F:Low noise blower and installed heating on it to make hot air .

H. all the motors install on this machine earth connection, for example water tank motor earth connection, auto water filling system, fill water auto if needed .
I: water tank stainless steel, water can be heated

J: one brush one motor, glass wash machine have seven motors installed

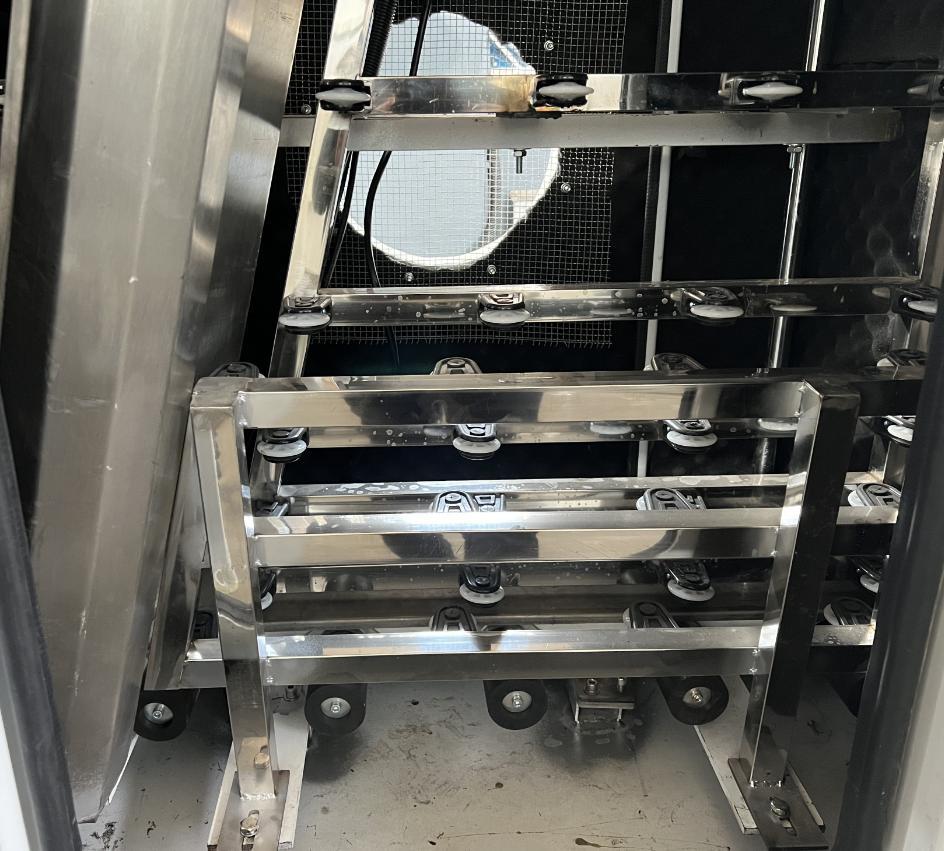

I. inside wash machine both stainless steel
K. Bottom two layer
This avoid machine frame change after long time running

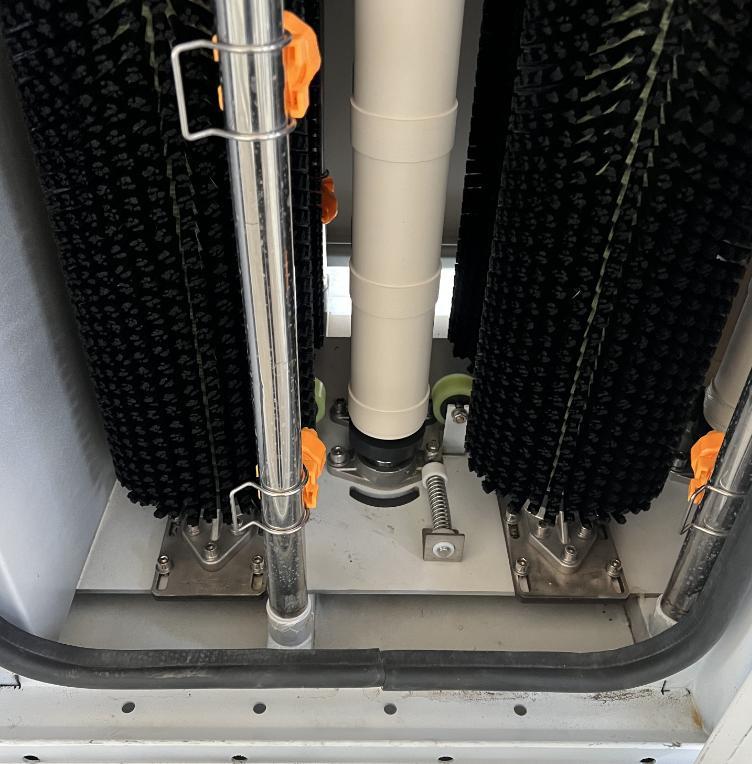

L.Three pairs brushes and can do low E glass.
M.Can wash different thickness of glass automatic.
Water spray by universal nozzle  ,not only make hole in the pipe, this nozzle is easy to take out and change the water spay direction,

N.glass dryer part both is stainless steel and the airknife is stainless steel.

K: Electric cable and the electric parts picture :
1.Three Omron inverter to make speed changeable
2.Water controlled by Omron temperature watch
3.PLC OMRON
4.Low voltage electric parts schneider

Parameter 2.0 meter wash machine :
Voltage：380V 60HZ（other voltage as your inquiry）
Power: 24 KW
Max.size of glass: 2000*2500mm
Min.size of original glass: 400*400mm
Thickness of original glass: 4-19 mm
Work speed: 8-48 m/min
CLOSED TOP
Parameter 2.5 meter wash machine :
Voltage：380V60HZ
Power: 29 KW
Max.size of original glass: 3600*2500mm
Min.size of original glass: 400*400mm
Thickness of original glass: 4-19 mm
Wash glass speed ：0-12m/min
LOW-E and soft coated glass available
Weight: 3000kg
