glass cutting machine
Key words:
Product Classification:
Product Details

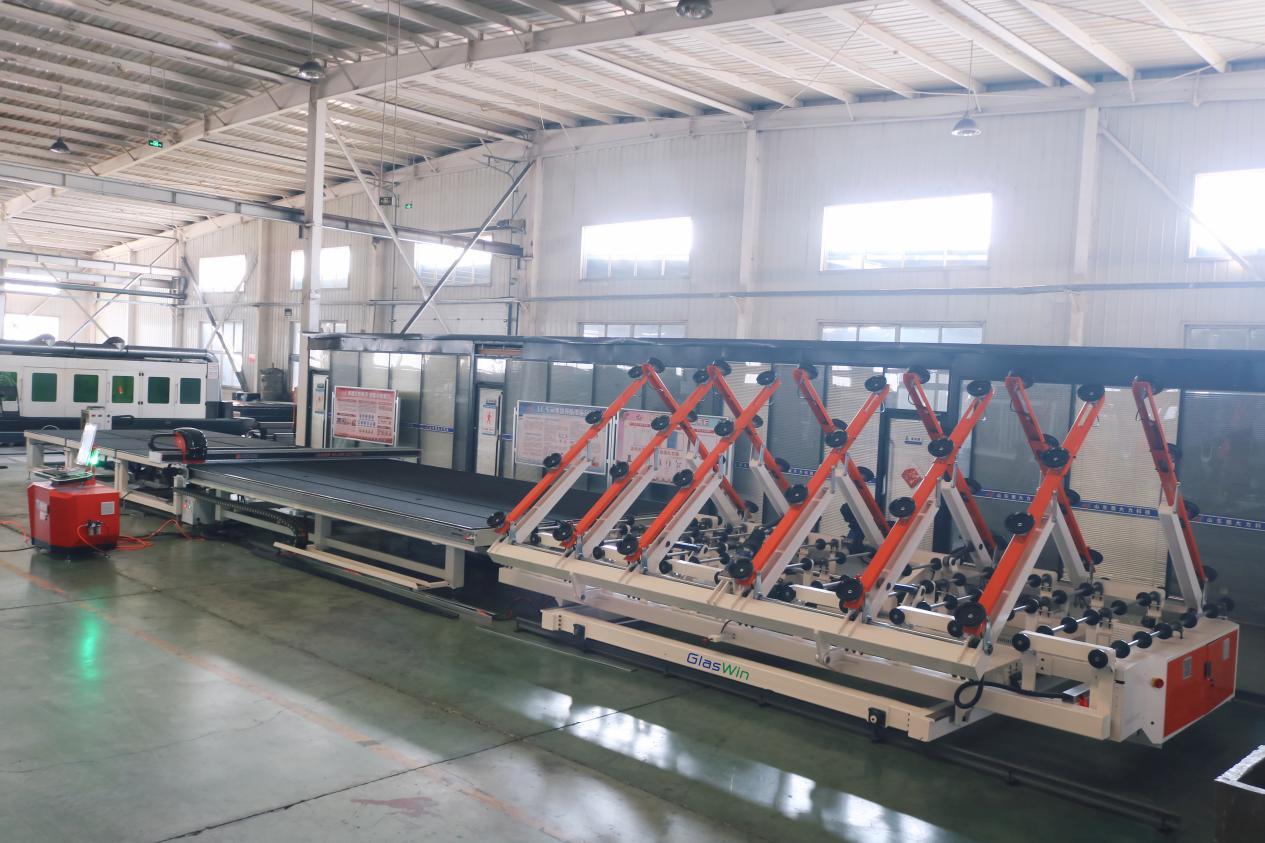

automatic glass cutting line is composed of auto glass loading machine, CNC glass cutting machine and air float glass breaking table, which can realize glass automatic loading, transmission, positioning, optimization, cutting and breaking function.

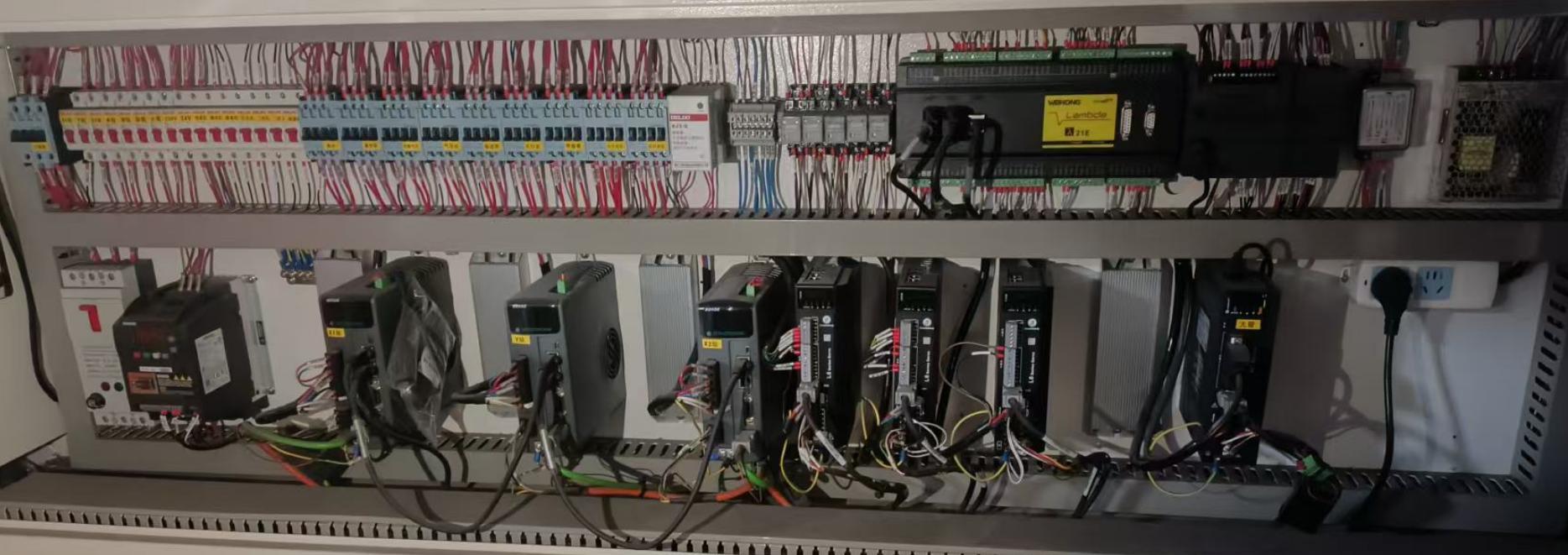

The three machines are controlled by one central controller, and compose an automatic glass cutting line in high efficiency and precision.
The line mainly contains three sections:
1. Automatic Glass Loading Machine
2. Automatic Shaped Glass Cutting Machine
3. Glass Breaking Table
Technical parameter:
|
Model |
Max. glass size |
Thickness |
Dimensions (L*W*H) |
Max. speed |
Air pressure |
|
CNC-4228 |
4200*2800mm |
3~19mm |
14500*3600*1300mm |
180m/min |
0.6~0.8MPa |
|
CNC-2620 |
2600*2000mm |
2~19mm |
11000*3000*1300mm |
150m/min |
0.6~0.8MPa |
|
CNC-5133 |
5100*3300mm |
3~19mm |
17000*4212*1300mm |
180m/min |
0.6~0.8MPa |
|
CNC-6133 |
6100*3300mm |
3~19mm |
19980*4212*1300mm |
180m/min |
0.6~0.8MPa |
|
CNC-8533 |
8500*3300mm |
3~19mm |
27000*4200*900mm |
180m/min |
0.6~0.8MPa |
|
CNC-10033 |
10000*3300mm |
3~19mm |
32000*4200*900mm |
180m/min |
0.6~0.8MPa |

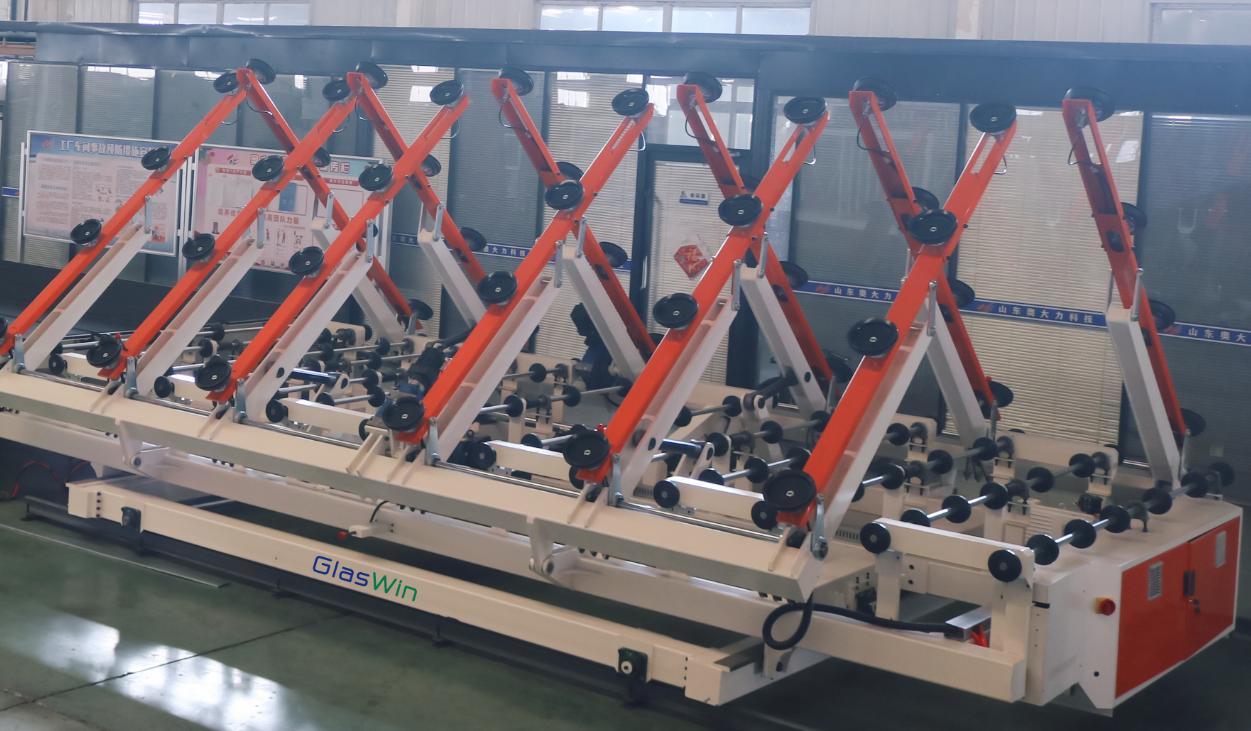

Glass loading Machine:

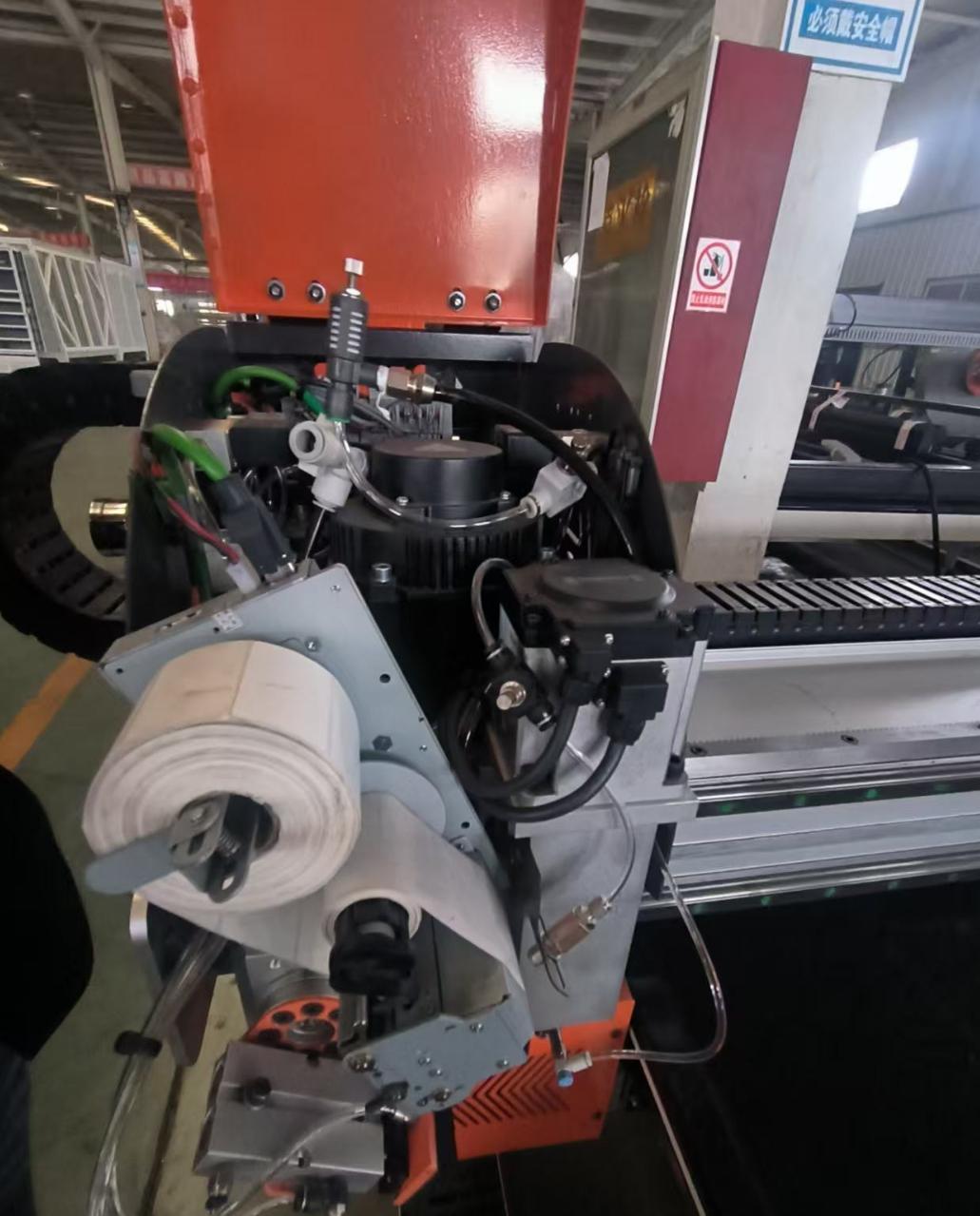

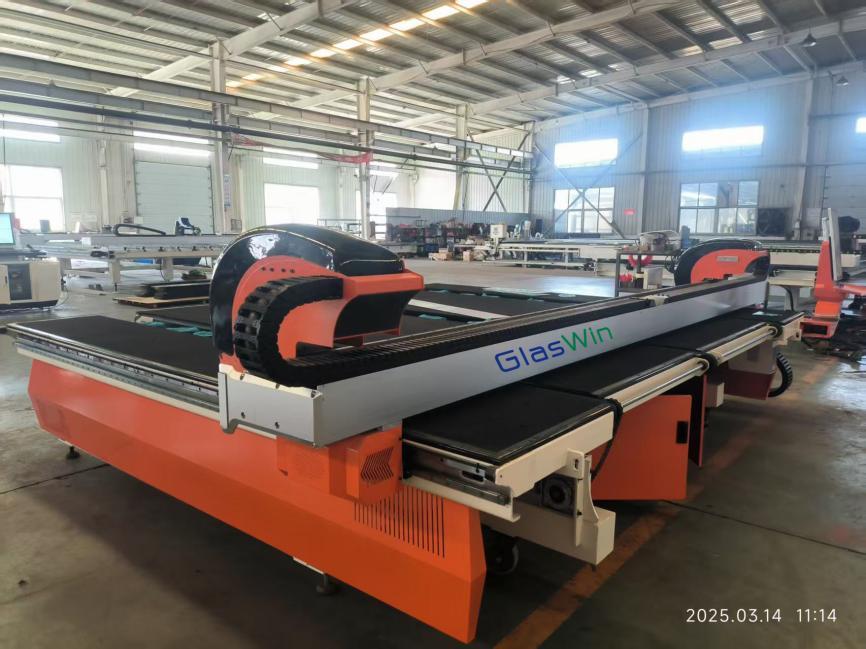

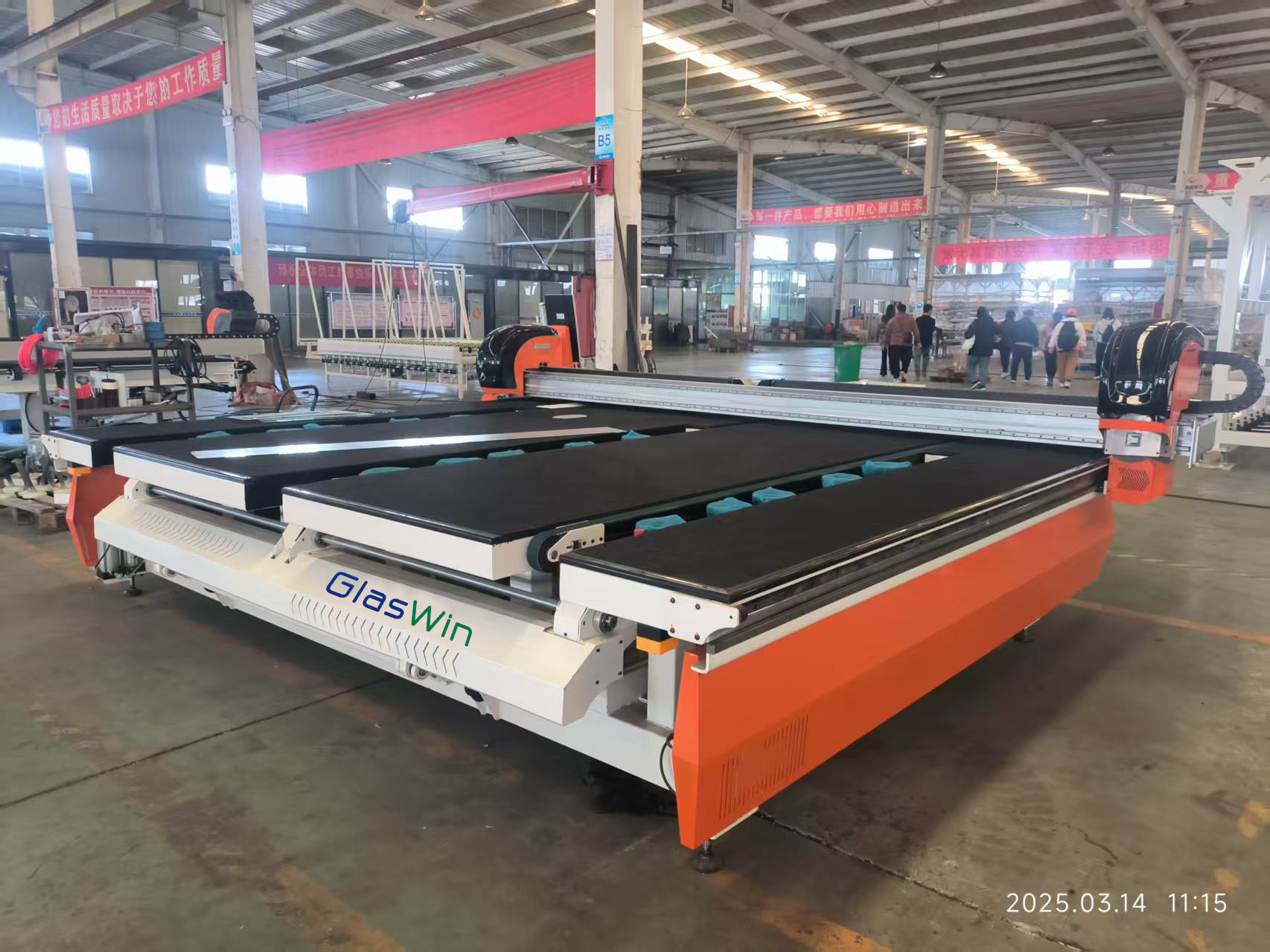

Glass cutting Machine:

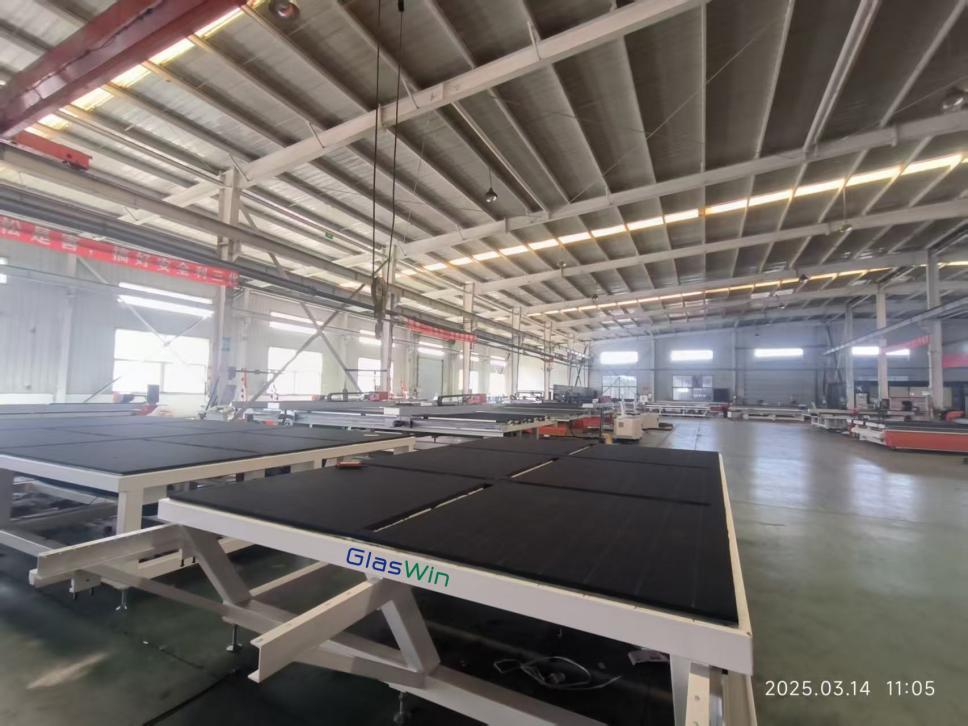

Glass breaking Table:
|
|
|
